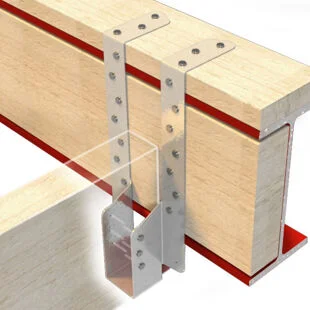

Expamet Long Leg Speedy Joist Hanger 150mm LLS150
This is an adjustable joist hanger made from Galvanized Mild Steel DX51D+Z275 to EN10346:2015 standards. The Fixing Hole Dimensions are 3.8mm, and the Fixing Type is 3.75 x 30mm Square Twisted Sherardized/Galvanized Nails. Use all nail holes to achieve the stated loads. Make sure the hanger is the correct size for the joist and pack any slack. Cut the joists square with a gap not exceeding 6mm from the rear of the hanger. Fold the straps over the supporting timber and fix them with the provided holes. Do not shorten or modify the straps. Ensure the floor has suitable noggins/strutting as required before applying a load.
Declared Loadbearing Capacity
LLS91 7.6kN (ULS) 6.7kN (Underslung)
LLS75 7.6kN (ULS) 6.7kN (Underslung)
LLS50 7.6kN (ULS) 6.7kN (Underslung)
LLS47 7.6kN (ULS) 6.7kN (Underslung)
LLS100 9.6kN (ULS) 6.7kN (Underslung)
Features & Benefits
- Adjustable fixing straps to suit multiple joist depths
- Can be underslung by up to 100mm
- 275g/m2 Galvanised Zinc Coating
- Covered by a European Technical Approval
- Euroclass A1
- Max joist height 225mm
- 50mm Shoe
- Material Gauge 1.5mm
